SPECIFICATIONS

2T/4T: Support

Arc-starting: Non-HF Pilot Arc

Brand Name: iYeah

Certification: CE

Dimensions: 46*32*26cm

Duty-cycle: 60%

High-concerned chemical: None

Input Voltage: 110V/220V±15%

Input voltage frequency: 50/60Hz

Max cutting thickness: 25mm@70PSI

Model Number: CUT55CNC

Origin: Mainland China

Output current range: 20-55A

Rated Current: 55A

Rated input power: 7.5KW

Rated output voltage: 110V

Torch: PT60/PTM60

Use: Cutting

Weight: 10KGS

Manufacturer's Note:

1. We provide 2 years warranty for this cutting machine

2. The price for this machine is not include customer's local tax

3. Please read the words for the accessories and parameters before you place an order, Make sure it is what you want

4. Please contact us before you open a dispute or leave a negative feedback if you have any problem, We will try our best to help you.

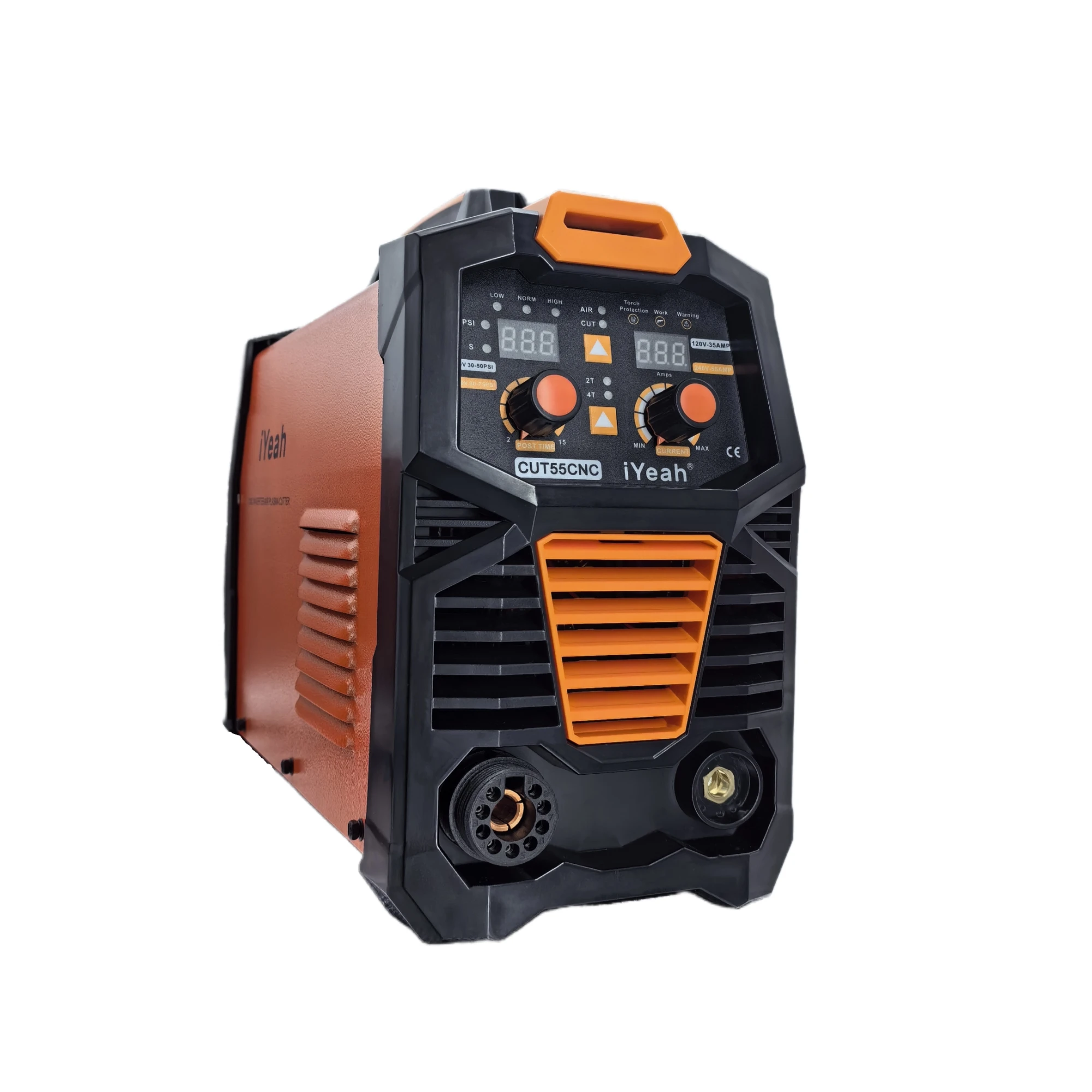

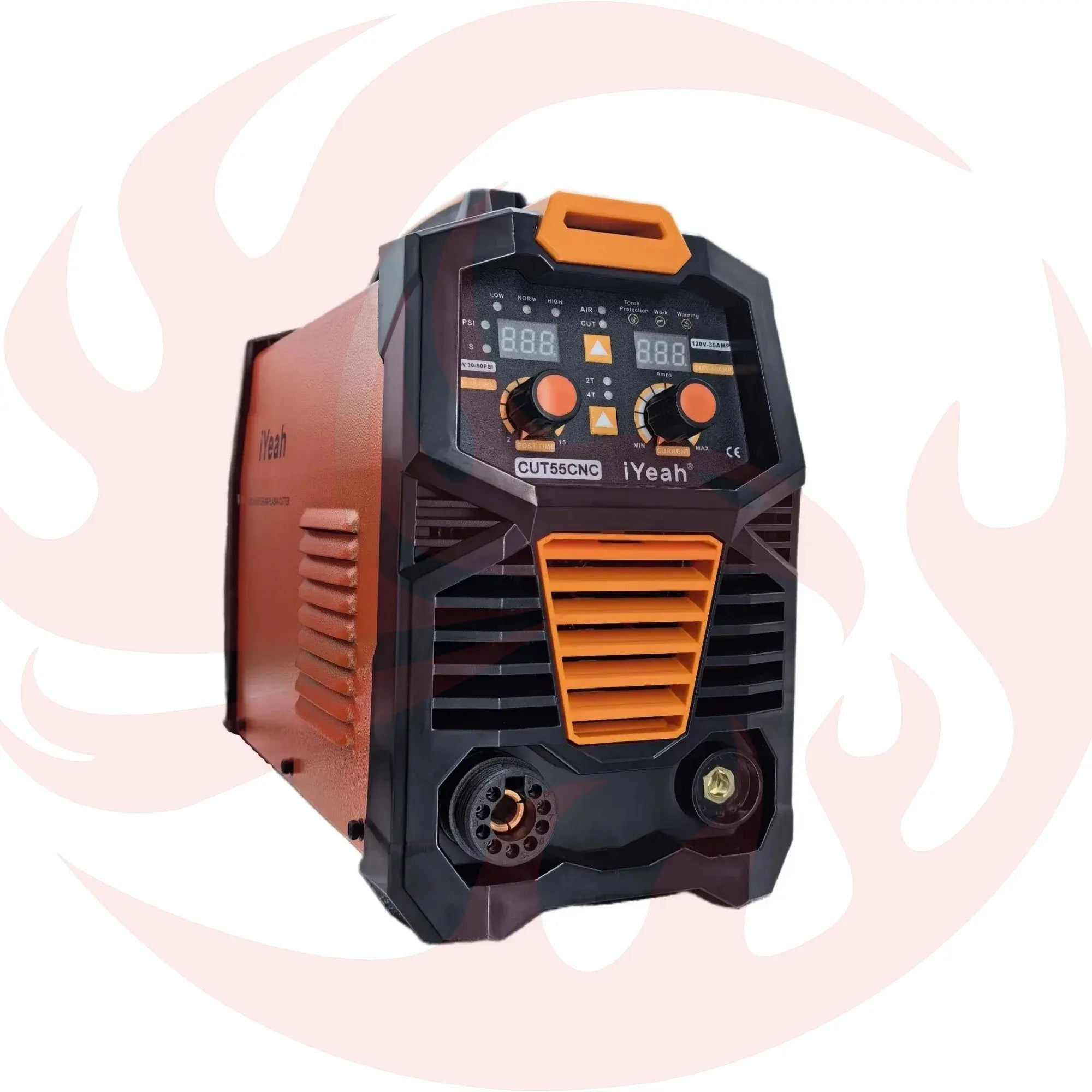

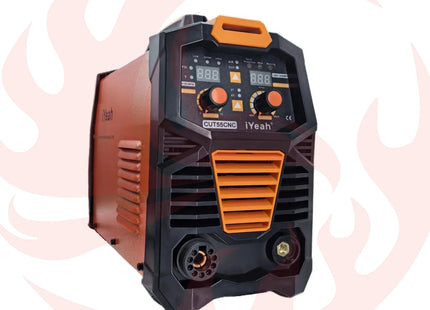

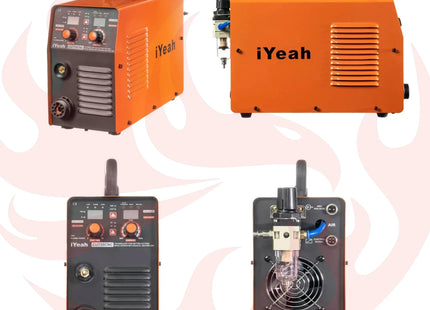

CUT55CNC Description:

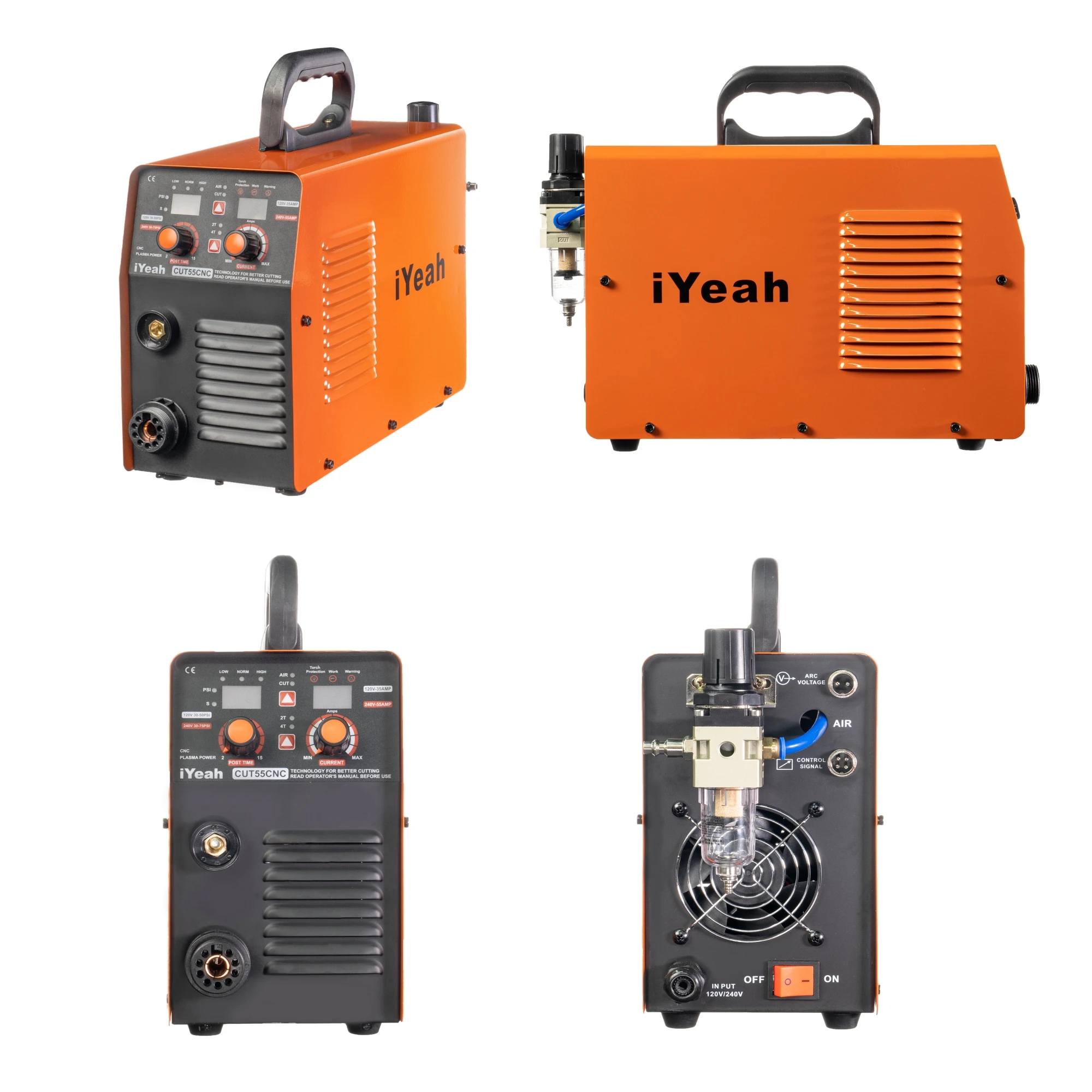

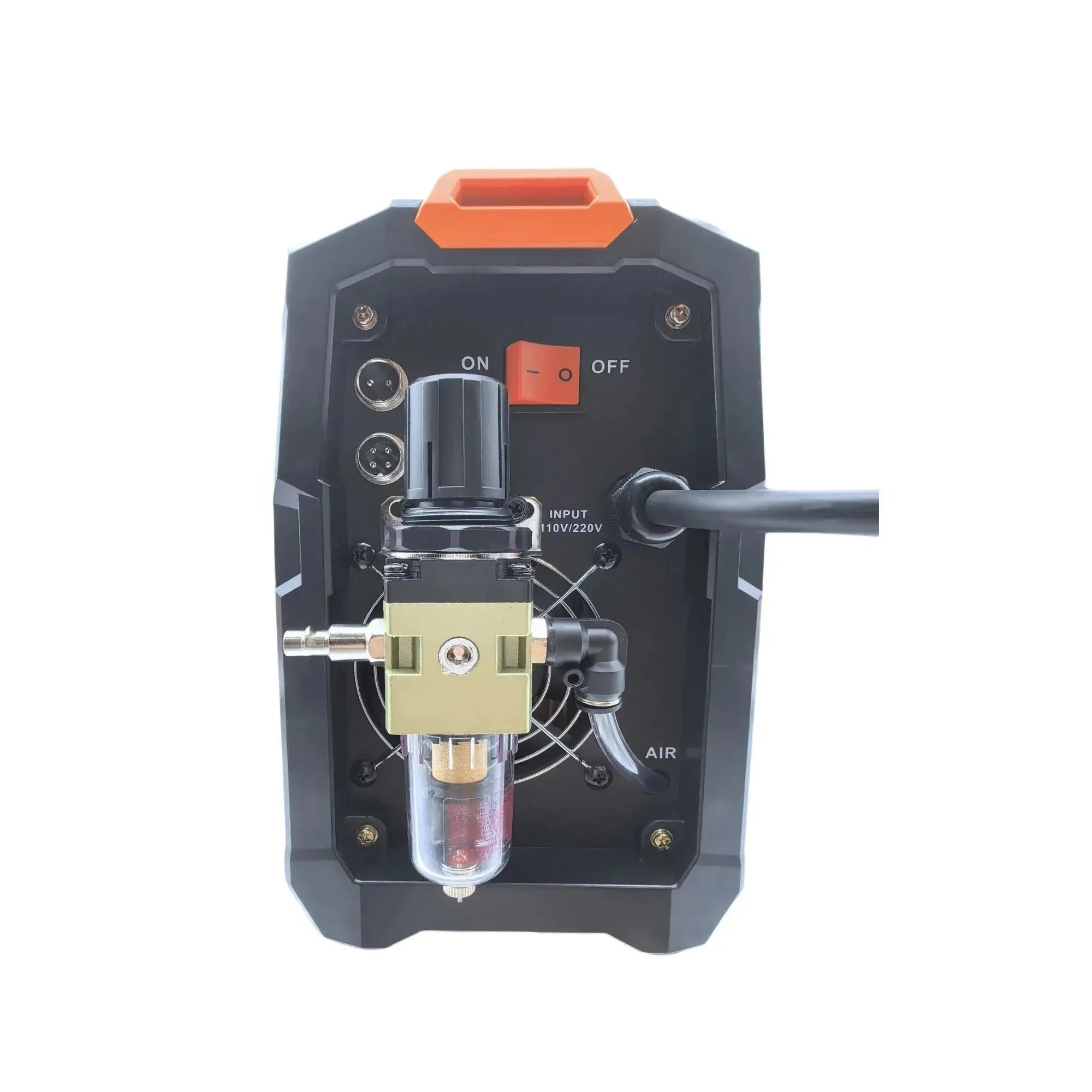

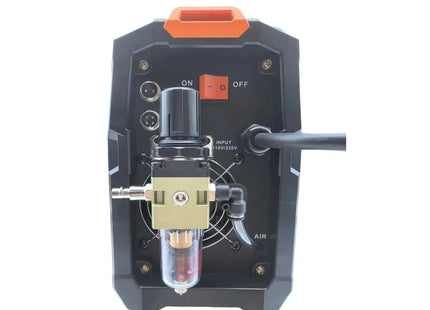

IGBT Non-HF Pilot arc Plasma cutting machine CUT55CNC is developed by iYeah Technology Co., Ltd, On rear of machine have CNC port, Can easy with CNC system. Non-HF pilot arc Heavy Duty efficient Digital controller. This machine is single phase/three-phase inverter cutting machines on the market. With quality torch fixed safety plasma plug, The fast connection quick to release torch and ground clamp. The machine is easy to operate in terms of settings, Display show cutting amps help user adjust the current to cut different metal. Cutting thickness for this machine is 20mm at 70 psi with good performance, Max cutting thickness can reach at 25mm if needed for a short run. Torch standoff and 5 set of consumables included.

1，PT60 High quality plasma cutting torch Or CNC PTM60 Straight torch.

2，Digital display, Air pressure Display, 2T/4T, Air Check / Cutting function.

3，Inverter 55Amps power supply, 60% Duty cycle at 55amps, 100% at 50amp.

4，IGBT Technology Non-HF Pilot Arc No Touch, With CNC port, Can easy with CNC system.

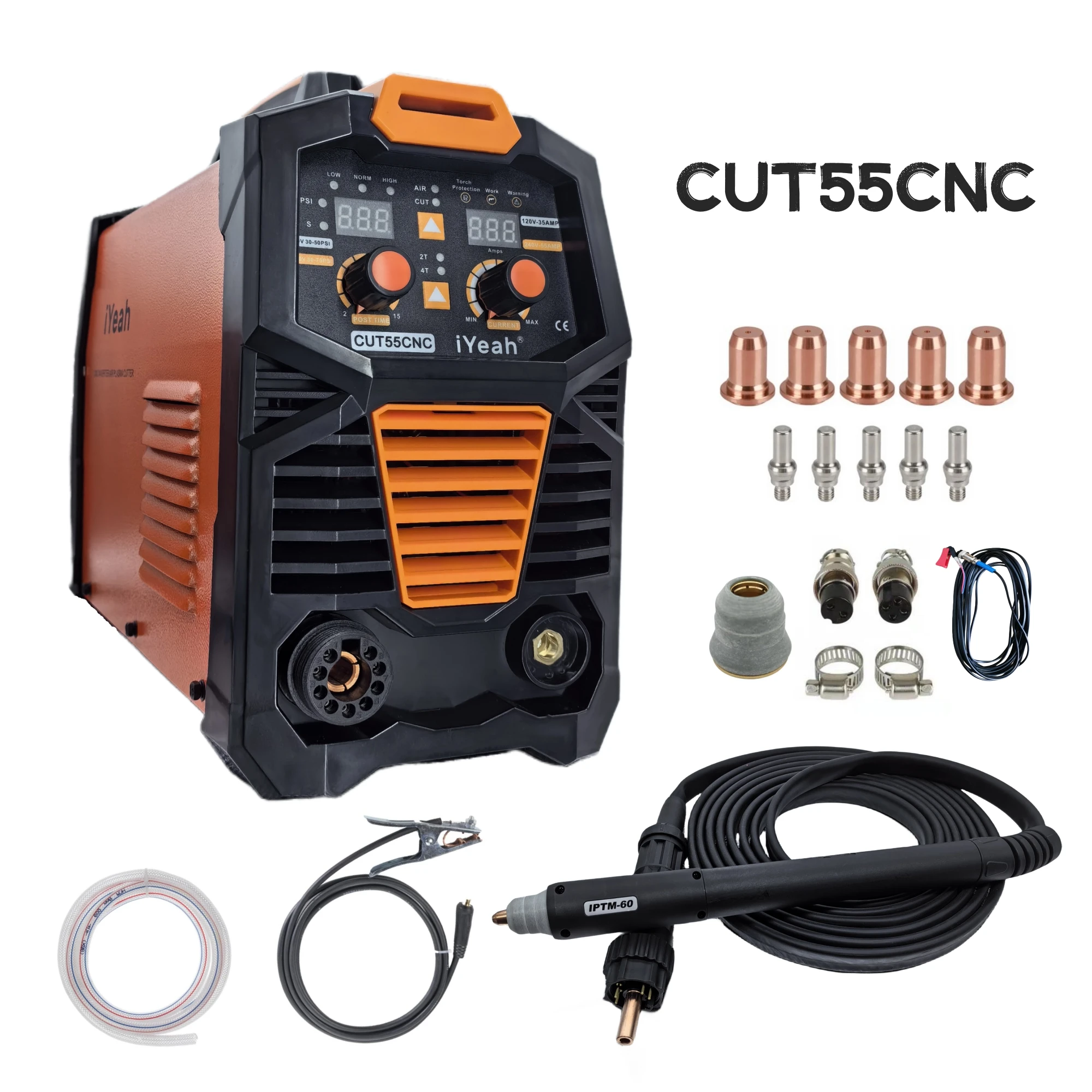

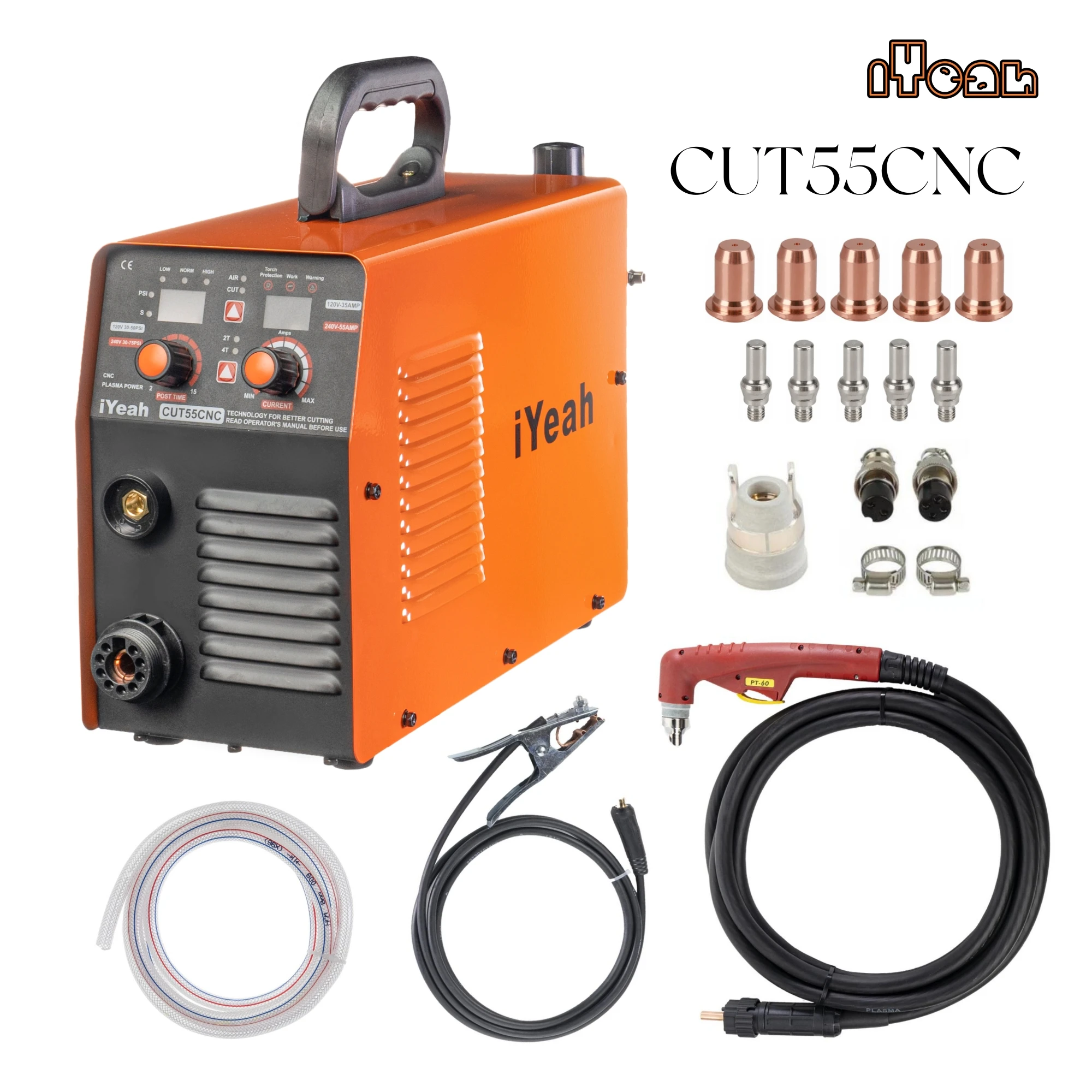

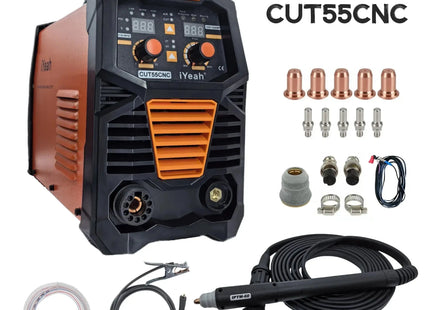

Accessories:

1. PT60 Or CNC Straight PTM60 Non-HF Pilot Arc Cutting torch

2. Earth clamp with 3 meters cable

3. 2 meters air hose

4. 2 pcs hose clamp

5. 5 pcs tips,5 pcs electrodes and 1pc shield cup

6. 2 pcs CNC connector
