SPECIFICATIONS
2T/4T: Support
Arc-starting: HF Pilot Arc
Brand Name: iYeah
Certification: CE
Dimensions: 46*32*26cm
Duty-cycle: 60%
High-concerned chemical: None
Input Voltage: 120V/240V±15%
Input voltage frequency: 50/60Hz
Max cutting thickness: 20mm@70PSI
Model Number: CUT55P
Origin: Mainland China
Output current range: 15-55A
Post Time: 2-15s
Rated Current: 55A
Rated input power: 7.5KW
Rated output voltage: 110V
Torch: AG60P
Use: Cutting
Weight: 9KGS
Manufacturer's Note:
1. We provide 2 years warranty for this cutting machine
2. The price for this machine is not include customer's local tax
3. Please read the words for the accessories and parameters before you place an order, Make sure it is what you want
4. Please contact us before you open a dispute or leave a negative feedback if you have any problem, We will try our best to help you.

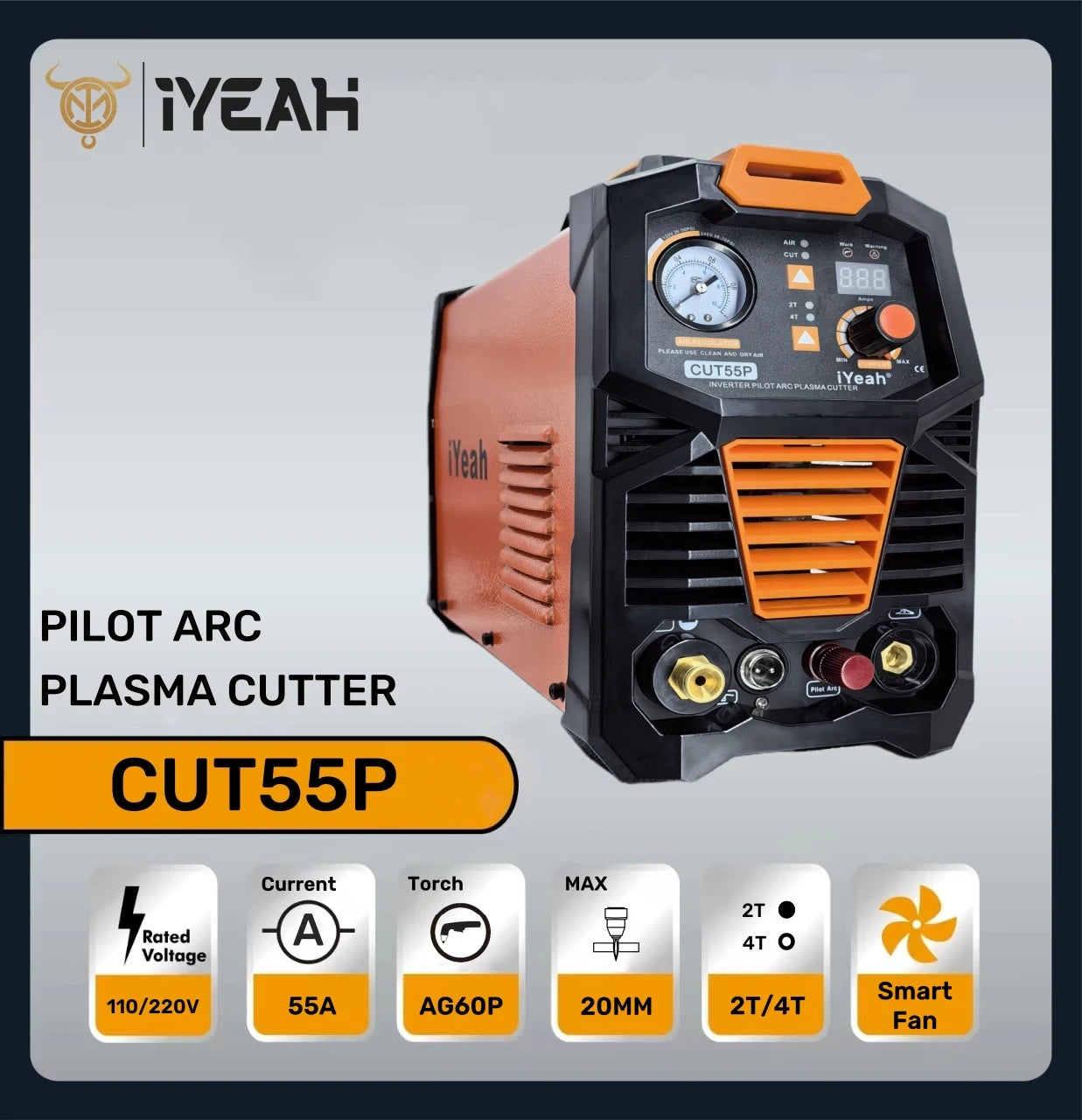

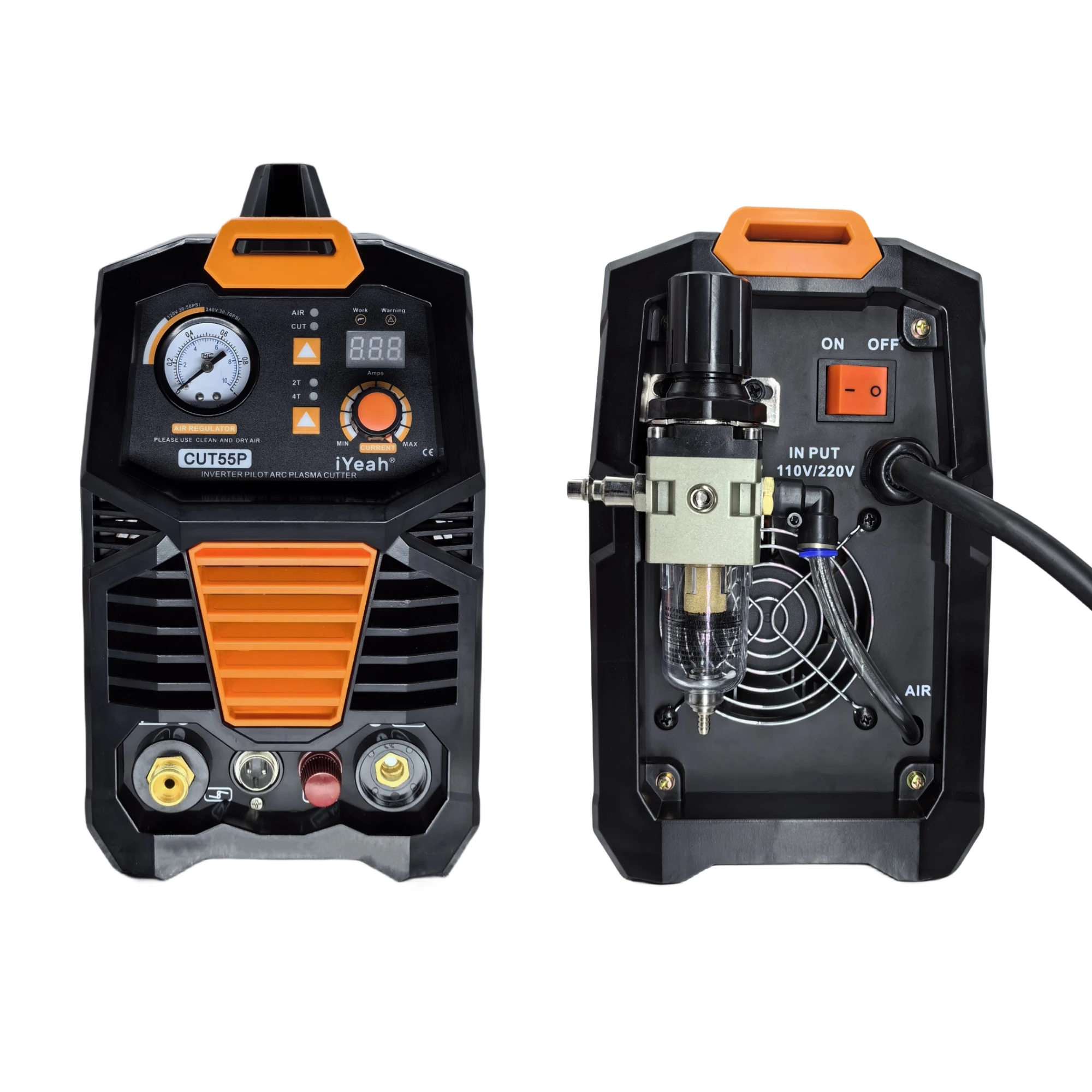

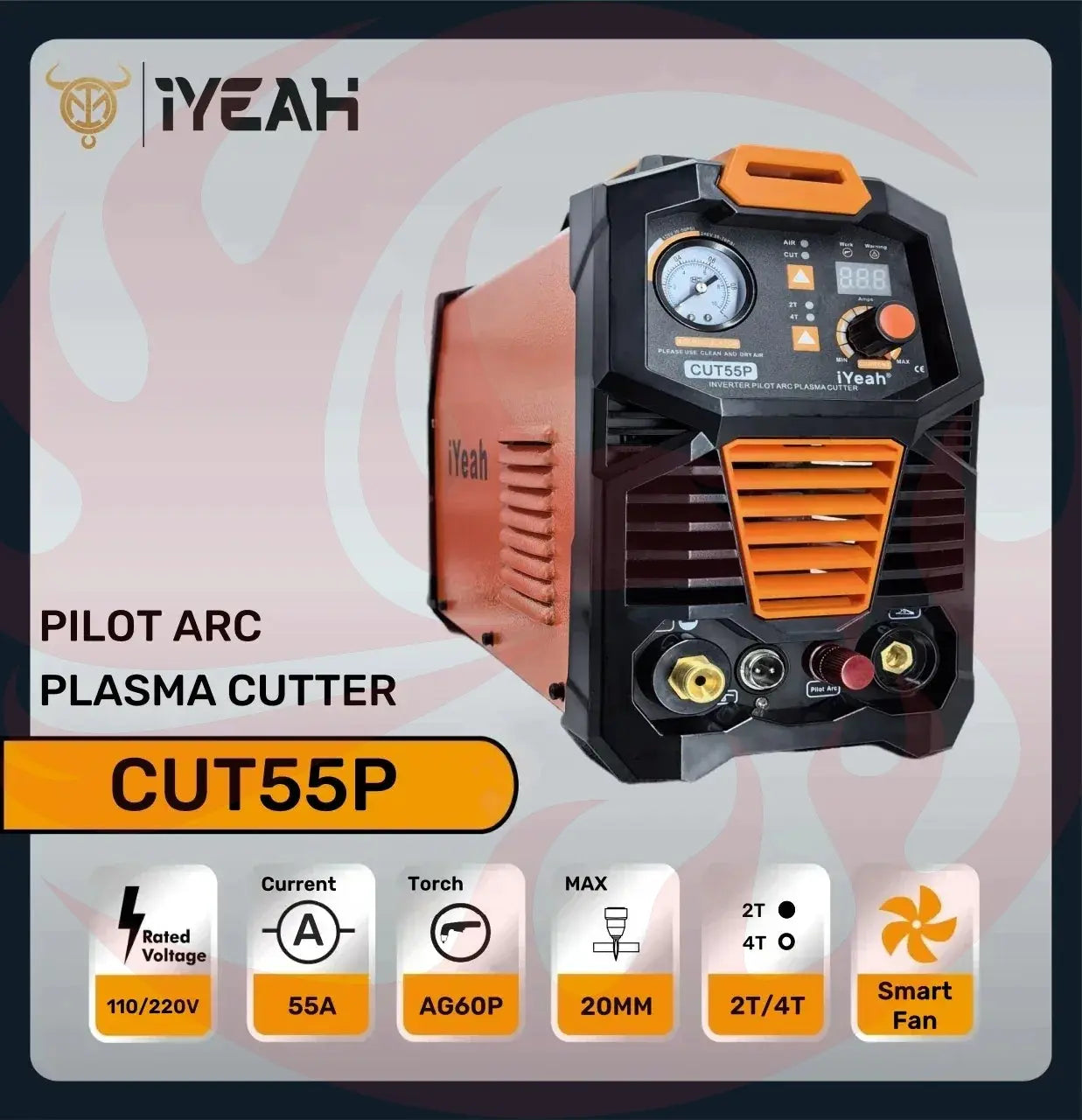

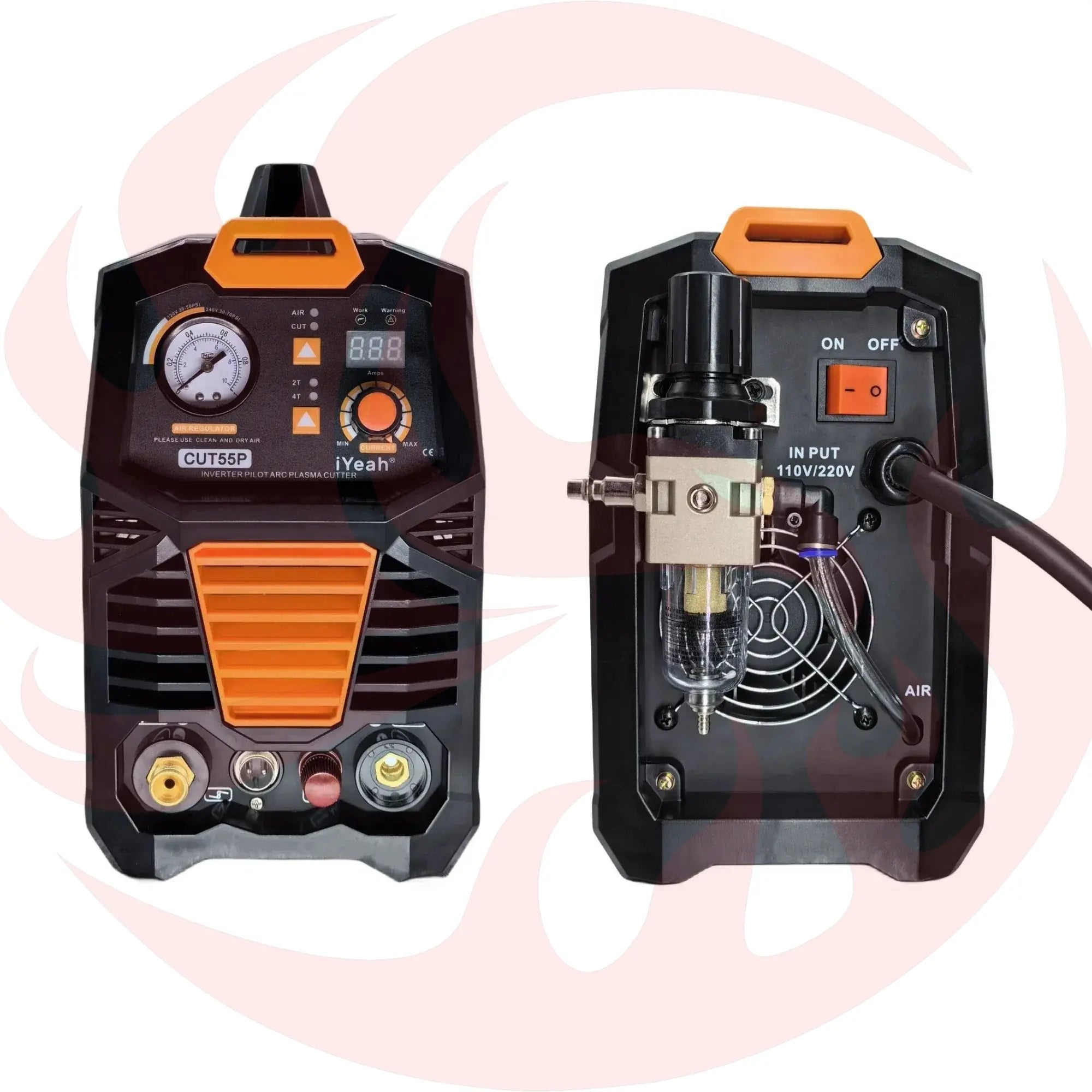

CUT55P Description:

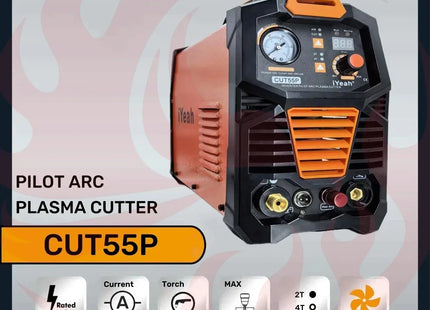

HF Pilot arc Plasma cutting machine CUT55P is developed by iYeah Technology Co., Ltd, HF pilot arc Heavy Duty efficient Digital controller. This machine is single phase/three-phase inverter cutting machines on the market. With quality torch fixed safety plasma plug, The fast connection quick to release torch and ground clamp. The machine is easy to operate in terms of settings, Display show cutting amps help user adjust the current to cut different metal. Cutting thickness for this machine is 20mm at 70 psi with good performance, Max cutting thickness can reach at 20mm if needed for a short run. Torch standoff and 5 set of consumables included.
l AG60P High quality Pilot Arc plasma cutting torch.

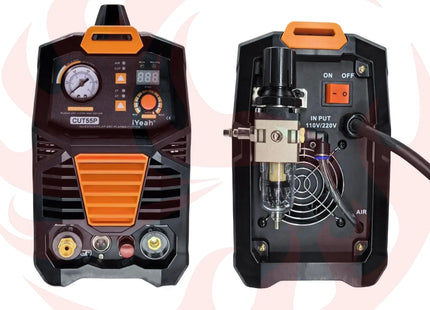

l Digital display, Air pressure Display, 2T/4T, Air Check / Cutting function.
l Inverter 55Amps power supply, 60% Duty cycle at 55amps, 100% at 50amp.
l IGBT Technology HF Pilot Arc No Touch.

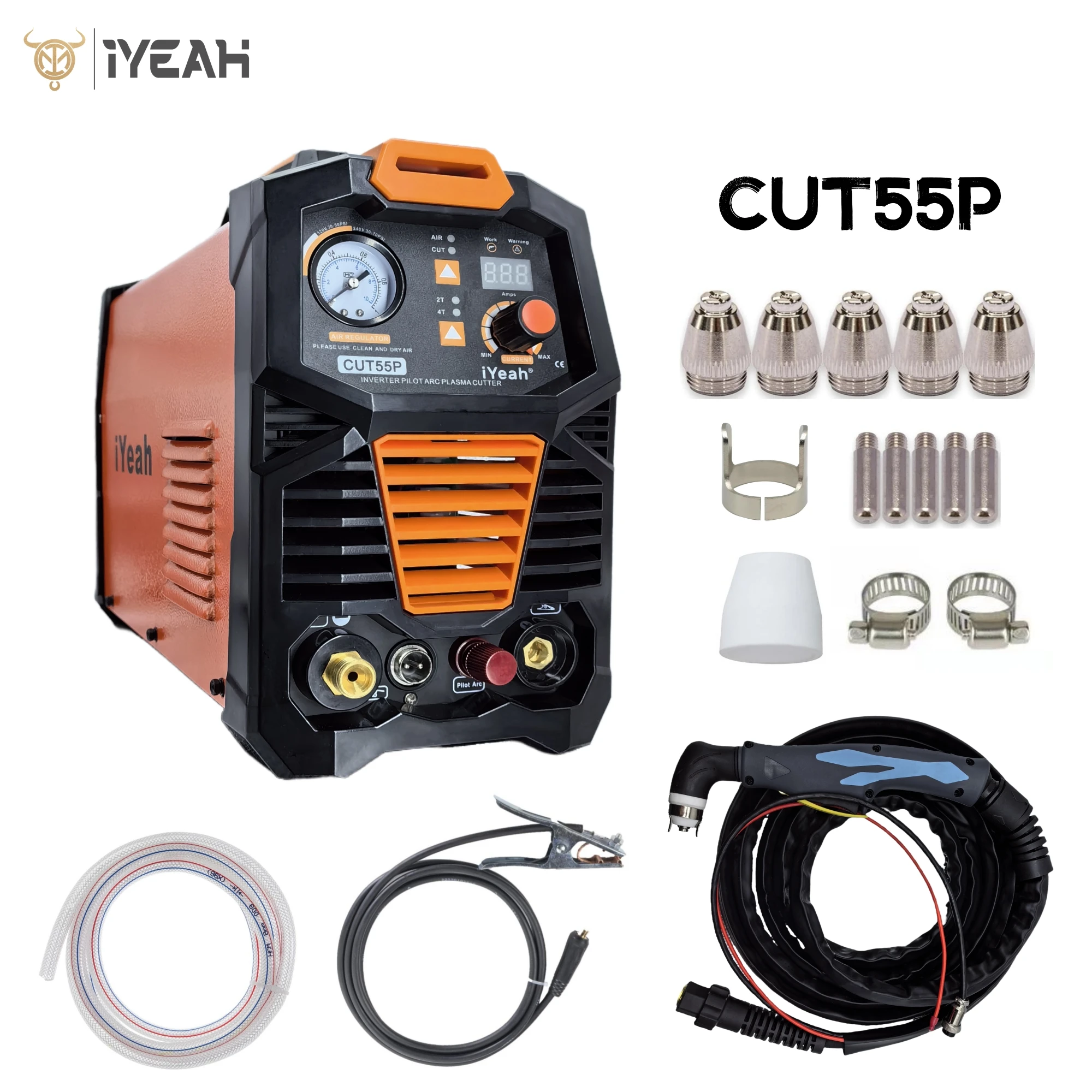

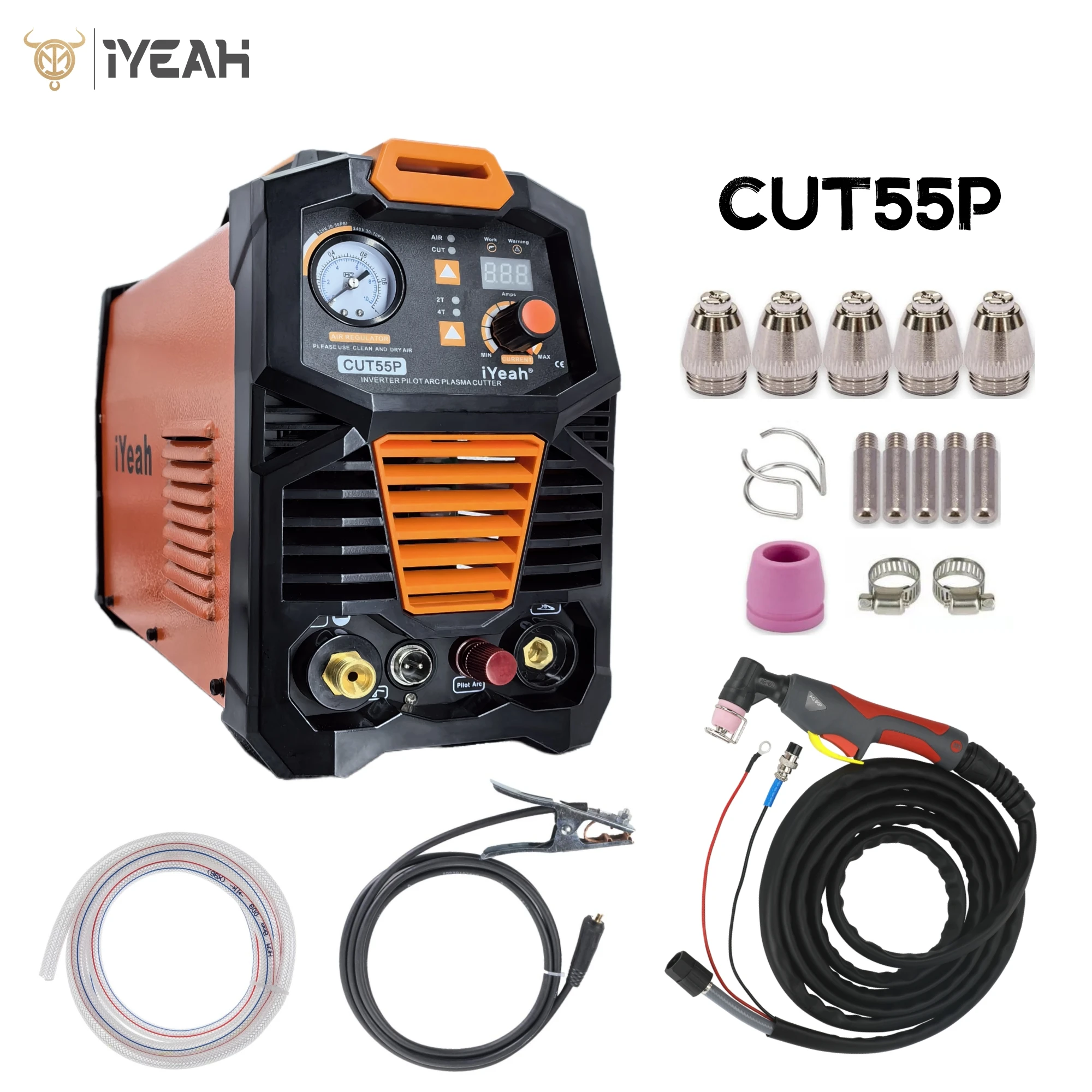

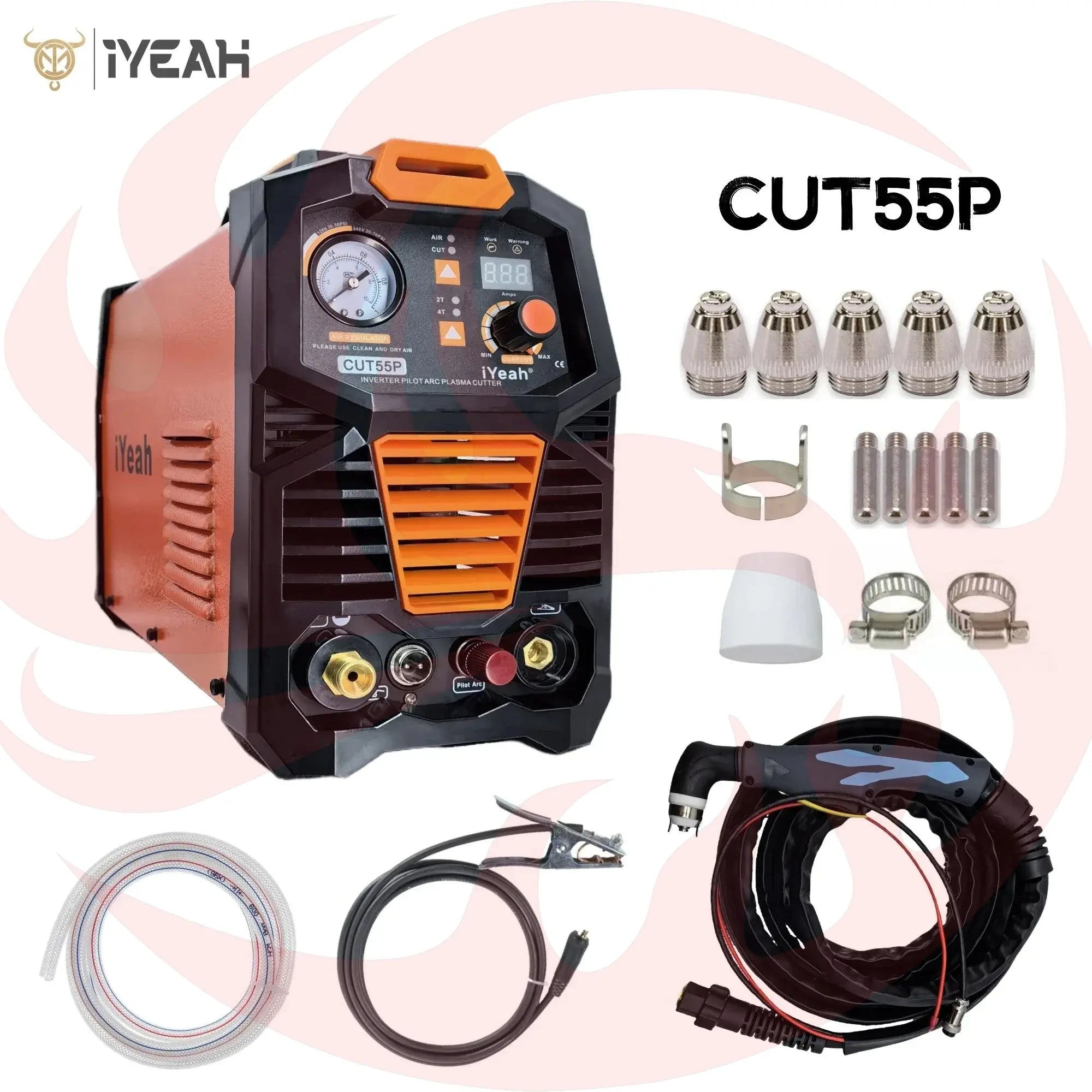

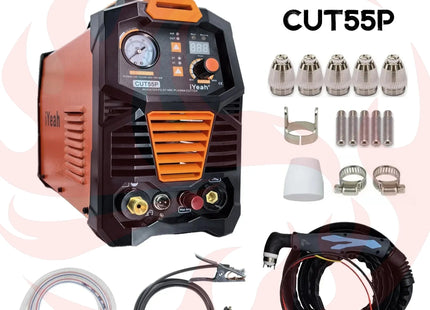

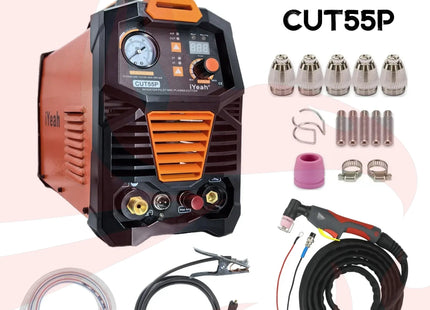

Accessories:

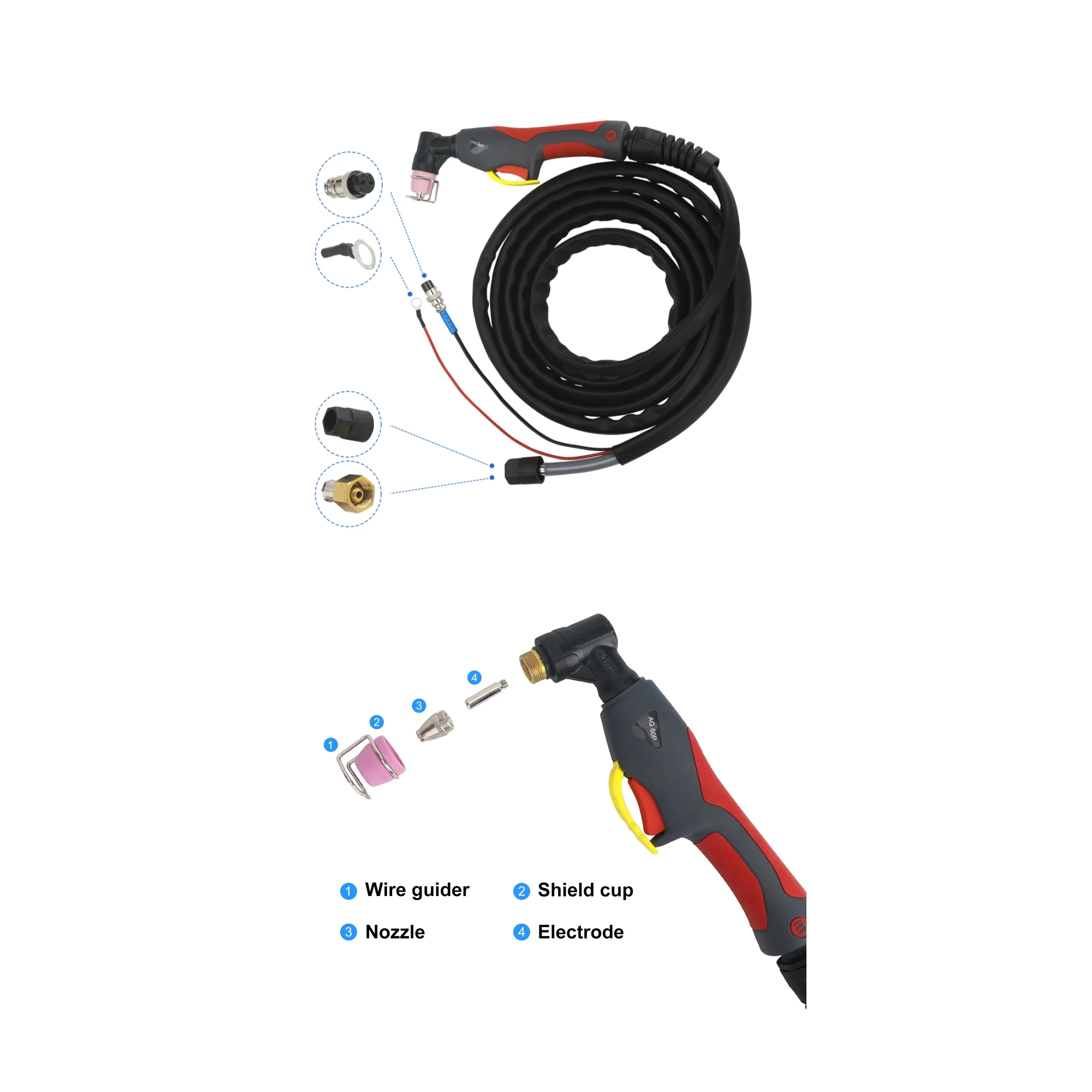

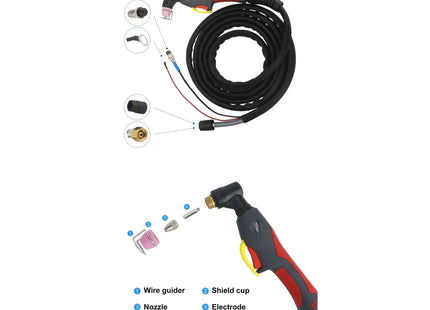

1. 4m AG60P HF Pilot Arc Cutting torch
2. Earth clamp with 3 meters cable
3. 2 meters air hose
4. 2 pcs hose clamp
5. 5 pcs tips,5 pcs electrodes and 1pc shield cup
